Stainless Steel Bridge Safety Mesh
Stainless Steel Bridge Safety Mesh for Railings and Protective Barriers
Bridge Safety Mesh is a flexible stainless steel rope mesh solution designed for pedestrian bridges, footbridges, bridge railings, elevated walkways, observation platforms, and other structures where additional protection and clear visibility are required.
Manufactured from high-quality SUS304, SUS316, or SUS316L stainless steel wire rope, bridge safety mesh provides a combination of corrosion resistance, flexibility, transparency, and architectural appearance.
The open diamond-shaped structure allows the mesh to function as a protective infill while maintaining visibility through the bridge railing. Mesh opening, rope diameter, panel dimensions, material grade, and edge configuration can all be customized according to project requirements.
Request a Quote
What Is Bridge Safety Mesh?
Bridge Safety Mesh is a stainless steel cable mesh system used as an infill or protective barrier for bridges, pedestrian bridges, elevated walkways, and related architectural structures.
The mesh is typically installed between structural posts, railing frames, support cables, or other bridge components.
Compared with solid metal barriers, stainless steel rope mesh provides a more open appearance and allows pedestrians to maintain a clear view of the surrounding environment.
Its flexible structure also allows it to adapt to different bridge designs, including straight, curved, inclined, and irregular sections.
Typical applications include:
- Pedestrian bridges
- Footbridges
- Bridge railings
- Bridge barriers
- Elevated walkways
- Observation bridges
- Scenic bridges
- Park bridges
- Urban pedestrian bridges
- Architectural bridges
Stainless steel rope mesh is commonly used for bridge barriers, railings, safety protection, and architectural structures where transparency and durability are important.
Key Features of Stainless Steel Bridge Safety Mesh
High Corrosion Resistance
Stainless steel rope mesh provides excellent resistance to atmospheric corrosion and is suitable for many outdoor bridge applications.
For coastal, marine, or salt-exposed environments, SUS316 or SUS316L can be selected for improved corrosion resistance.
Transparent Protection
The diamond-shaped cable structure provides a protective infill while maintaining visibility.
This is particularly useful for pedestrian bridges and scenic bridges where preserving views is an important part of the design.
Flexible Structure
Unlike rigid metal panels, rope mesh can adapt to curved and irregular bridge structures.
This allows architects and engineers to integrate the mesh into different railing geometries.
High Strength
Stainless steel wire rope provides a strong and durable mesh structure.
The final system performance depends on the selected rope diameter, mesh opening, support spacing, fixing system, and structural design.
Weather Resistant
Stainless steel rope mesh is suitable for outdoor applications and can withstand normal exposure to rain, humidity, sunlight, and changing weather conditions when the appropriate stainless steel grade is selected.
Customizable
Bridge safety mesh can be customized according to:
- Rope diameter
- Mesh opening
- Panel size
- Stainless steel grade
- Mesh type
- Edge configuration
- Fixing method
- Support structure
Bridge Safety Mesh Specifications
Arvemesh provides customized stainless steel bridge rope mesh according to project requirements.
| Specification | Available Options |
|---|---|
| Material | SUS304 / SUS304L / SUS316 / SUS316L |
| Rope Construction | 7 × 7 / 7 × 19 |
| Rope Diameter | Approx. 1.2–5.0 mm, customized |
| Mesh Opening | Approx. 20–300 mm, customized |
| Mesh Shape | Diamond |
| Mesh Type | Ferrule / Knotted |
| Opening Angle | Commonly 60°, customized |
| Surface | Natural stainless steel / customized |
| Panel Width | Customized |
| Panel Height | Customized |
| Edge Configuration | Customized |
| Installation | Frame / post / cable / railing system |
The actual specification should be selected according to bridge dimensions, support structure, environmental conditions, design loads, local building regulations, and engineering requirements.
SUS304 vs. SUS316 Bridge Safety Mesh
SUS304 Stainless Steel Bridge Mesh
SUS304 is suitable for many general outdoor architectural and pedestrian bridge applications.
It can be used for:
- Urban pedestrian bridges
- Park bridges
- Indoor bridges
- General outdoor walkways
- Architectural bridge railings
- Commercial developments
It provides a good balance between corrosion resistance, performance, and cost.
SUS316 Stainless Steel Bridge Mesh
SUS316 provides improved resistance to chloride-related corrosion and is often selected for more demanding outdoor environments.
It is particularly suitable for:
- Coastal bridges
- Waterfront walkways
- Seaside resorts
- Marine environments
- Bridges exposed to salt spray
- High-humidity locations
For long-term outdoor projects in aggressive environments, selecting the appropriate stainless steel grade is important.
Bridge Safety Mesh Applications
1. Pedestrian Bridge Safety Mesh
Pedestrian bridges require protective railing systems that help define the walking area while maintaining visibility.
Stainless steel rope mesh can be installed between bridge posts or railing structures as a flexible protective infill.
2. Footbridge Railing Mesh
Footbridges in parks, gardens, resorts, campuses, and urban areas can use stainless steel rope mesh for railing infill.
The open structure provides a lightweight architectural appearance.
3. Bridge Barrier Mesh
Bridge safety mesh can be used as a barrier or infill system along pedestrian bridge edges.
The mesh can be customized according to the required height, width, and support configuration.
4. Scenic Bridge Mesh
For scenic bridges and tourist attractions, visibility is particularly important.
Stainless steel rope mesh provides a protective boundary while allowing visitors to enjoy unobstructed views.
5. Elevated Walkway Mesh
Stainless steel cable mesh can be used along elevated walkways connecting buildings, platforms, parks, commercial areas, and public facilities.
6. Observation Platform Mesh
Observation decks and elevated viewing platforms can use stainless steel rope mesh as a transparent safety barrier.
7. Urban Bridge Railing
Modern urban pedestrian bridges can incorporate stainless steel rope mesh into railing systems to create a clean and contemporary architectural appearance.
8. Park and Garden Bridges
Small pedestrian bridges in parks, botanical gardens, resorts, and recreational areas can use stainless steel rope mesh as railing infill.

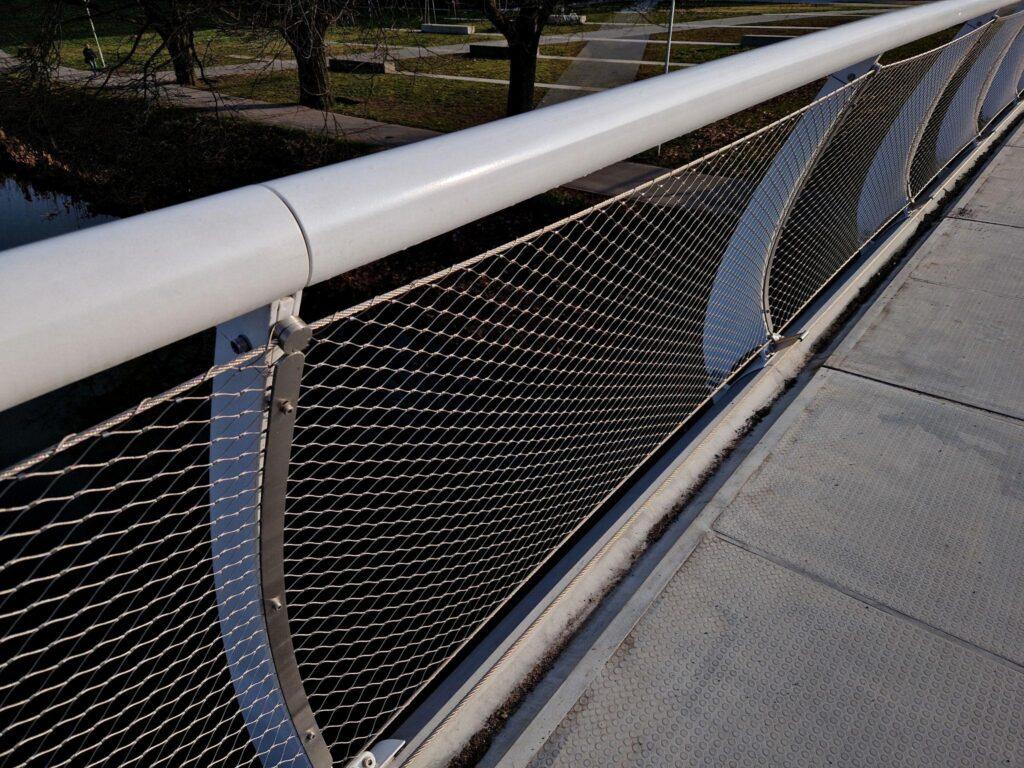

Bridge Railing Mesh
Bridge Railing Mesh is one of the most common applications of stainless steel rope mesh.
The mesh can be installed between:
- Stainless steel posts
- Steel posts
- Metal frames
- Handrails
- Support cables
- Bridge structures
A typical system may include:
- Stainless steel rope mesh
- Top support cable
- Bottom support cable
- Stainless steel posts
- Turnbuckles
- Ferrules
- Eye bolts
- Fixing hardware
The exact railing configuration should be designed according to the bridge structure and project engineering requirements.
Bridge Fall Protection Mesh
Stainless steel rope mesh can be used as part of a bridge fall protection system when properly designed and installed.
The mesh itself should not be considered independently from the complete structural system.
Important factors include:
- Mesh opening
- Rope diameter
- Panel dimensions
- Support spacing
- Edge fixing
- Frame strength
- Cable tension
- Anchoring method
- Design loads
- Environmental exposure
For public bridges and safety-critical applications, the complete system should be reviewed by a qualified engineer and designed according to applicable local standards and regulations.
Why Use Rope Mesh for Bridges?
Traditional bridge barriers can be made from solid metal panels, glass, vertical bars, or other rigid systems.
Stainless steel rope mesh offers several advantages when transparency and architectural appearance are important.
Better Visibility
The open mesh structure maintains views through the bridge railing.
Lightweight Appearance
The thin cable structure creates less visual obstruction than solid barriers.
Flexible Installation
The mesh can follow curved and irregular structures.
Corrosion Resistance
Stainless steel provides good outdoor corrosion resistance when the correct material grade is selected.
Custom Design
Mesh opening, rope diameter, panel size, and edge configuration can be customized.
Modern Appearance
The minimalist diamond pattern works well with contemporary bridge architecture.
Custom Bridge Safety Mesh
Different bridges require different mesh configurations.
Arvemesh can manufacture customized bridge safety mesh according to customer drawings and project specifications.
Custom Rope Diameter
Different cable diameters can be selected according to the project’s structural and design requirements.
Custom Mesh Opening
Mesh openings can be customized for different applications.
Smaller openings can provide greater obstruction to objects passing through, while larger openings provide greater visual openness.
Custom Panel Dimensions
Mesh panels can be manufactured according to the actual bridge railing dimensions.
Custom Edge Configuration
The mesh edges can be prepared for connection to:
- Frames
- Posts
- Cables
- Handrails
- Structural supports
Custom Stainless Steel Grade
Available material options include:
- SUS304
- SUS304L
- SUS316
- SUS316L
Ferrule or Knotted Construction
Arvemesh can provide ferrule-type and knotted stainless steel rope mesh according to the project’s appearance and installation requirements.
Bridge Safety Mesh Installation
A typical installation process includes:
Step 1 – Project Measurement
Determine the bridge railing length, height, support spacing, and individual panel dimensions.
Step 2 – Specification Selection
Confirm:
- Stainless steel grade
- Rope diameter
- Mesh opening
- Mesh type
- Panel dimensions
- Edge configuration
Step 3 – Mesh Manufacturing
The stainless steel rope mesh is manufactured according to the approved project specifications.
Step 4 – Support Structure Preparation
Install the required posts, frames, cables, anchors, and fixing points.
Step 5 – Mesh Installation
Connect the mesh to the bridge railing structure using the appropriate fixing components.
Step 6 – Inspection
Check the mesh alignment, fixing points, tension, dimensions, and overall installation condition.
The final installation method should be determined according to the bridge structure and project engineering requirements.
Bridge Safety Mesh for Coastal and Marine Environments
Bridges located near the sea are exposed to moisture, salt spray, and chloride-containing environments.
For these applications, SUS316 or SUS316L stainless steel rope mesh is often preferred over 304 stainless steel because of its improved resistance to chloride-related corrosion.
Typical applications include:
- Coastal pedestrian bridges
- Waterfront walkways
- Seaside resorts
- Marine parks
- Harbor walkways
- Ocean-view observation platforms
The appropriate stainless steel grade should be selected according to the actual environmental conditions and project specifications.
Bridge Safety Mesh for Architectural Projects
Stainless steel rope mesh is suitable for bridge projects where the safety barrier needs to complement the surrounding architecture.
It can be incorporated into:
- Modern pedestrian bridges
- Landmark bridges
- Landscape bridges
- Resort bridges
- Garden bridges
- Urban infrastructure
- Commercial developments
- Public architecture
- Transportation facilities
Its transparent appearance allows designers to maintain visual connections between the bridge and surrounding landscape.
Bridge Safety Mesh vs. Solid Metal Barrier
| Feature | Stainless Steel Rope Mesh | Solid Metal Barrier |
|---|---|---|
| Transparency | Excellent | Low |
| Visual Obstruction | Low | High |
| Flexibility | High | Low |
| Curved Structures | Suitable | More difficult |
| Custom Mesh Opening | Yes | No |
| Architectural Appearance | Lightweight | Solid |
| Outdoor Application | Suitable | Suitable |
| Corrosion Resistance | Excellent with suitable grade | Depends on material/coating |
| Maintenance | Generally low | Depends on material/coating |
The appropriate bridge barrier solution depends on the project design, structural requirements, applicable regulations, environment, and budget.
How to Order Bridge Safety Mesh
To receive an accurate quotation, provide:
Project Application
For example:
- Pedestrian bridge
- Footbridge
- Scenic bridge
- Elevated walkway
- Observation platform
Dimensions
Provide:
Length × Height
or individual panel dimensions.
Mesh Opening
Specify the required opening if already determined.
Rope Diameter
Provide the required cable diameter if specified.
Material
Choose:
SUS304 / SUS316
or ask Arvemesh for a material recommendation based on the environment.
Quantity
Provide:
- Number of panels
- Total square meters
- Total bridge length
Drawings
CAD drawings, PDF drawings, sketches, or dimensioned project drawings are welcome.
Why Choose Arvemesh?
Arvemesh supplies customized stainless steel rope mesh for architectural, safety, industrial, and protection applications.
Our capabilities include:
- SUS304 stainless steel rope mesh
- SUS316 stainless steel rope mesh
- Ferrule rope mesh
- Knotted rope mesh
- Custom mesh openings
- Custom rope diameters
- Custom panel dimensions
- Custom edge configurations
- OEM production
- Project-based customization
- Export packaging
- International shipping support
We work with international customers on customized stainless steel mesh requirements for bridges, balconies, staircases, railings, facades, and other architectural applications.
Frequently Asked Questions
What is Bridge Safety Mesh?
Bridge Safety Mesh is a stainless steel rope mesh system used for bridge railings, pedestrian bridge barriers, elevated walkways, observation platforms, and other protective architectural applications.
What material is used for bridge safety mesh?
Common materials include SUS304, SUS304L, SUS316, and SUS316L stainless steel.
Is stainless steel rope mesh suitable for outdoor bridges?
Yes. Stainless steel rope mesh is suitable for many outdoor architectural and bridge applications. The appropriate stainless steel grade should be selected according to the environmental conditions.
Is 316 stainless steel better for coastal bridges?
For coastal and salt-exposed environments, SUS316 or SUS316L is generally preferred because of its improved resistance to chloride-related corrosion.
Can bridge mesh be customized?
Yes. Rope diameter, mesh opening, panel dimensions, material grade, mesh type, and edge configuration can all be customized.
What mesh opening should I use for a pedestrian bridge?
The appropriate mesh opening depends on the project design, applicable safety regulations, required protection, and engineering requirements. Arvemesh can manufacture different mesh openings according to project specifications.
Can rope mesh be installed on curved bridges?
Yes. Stainless steel rope mesh is flexible and can follow curved, inclined, and irregular bridge structures.
Can the mesh be used for bridge railings?
Yes. Bridge railing infill is one of the common applications for stainless steel rope mesh.
Can stainless steel rope mesh be used on scenic bridges?
Yes. Its transparent structure makes it particularly suitable for scenic bridges where maintaining views is important.
Do you manufacture custom bridge mesh panels?
Yes. Custom panels can be manufactured according to drawings, dimensions, mesh opening, rope diameter, and stainless steel grade.
Can you manufacture according to CAD drawings?
Yes. CAD, PDF, sketches, and dimensioned drawings can be provided for custom bridge safety mesh projects.
How can I request a quotation?
Send us your bridge dimensions, mesh opening, rope diameter, stainless steel grade, quantity, application, and project drawings.
Arvemesh will review your requirements and provide a suitable customized solution.
Get a Quote for Bridge Safety Mesh
Looking for a stainless steel bridge safety mesh manufacturer?
Arvemesh provides customized SUS304 and SUS316 stainless steel rope mesh for pedestrian bridges, footbridges, bridge railings, elevated walkways, observation platforms, and architectural safety applications.
Send us your project dimensions and requirements for a customized quotation.
Request a Quote
Contact Arvemesh for Custom Stainless Steel Bridge Safety Mesh.
