Stainless Steel Construction Safety Mesh for Construction Sites

Stainless steel construction safety mesh is a flexible rope mesh solution for construction sites, temporary work areas, building renovation projects, elevated platforms, open edges, stair openings, walkways, and areas requiring additional site safety protection.

Manufactured from SUS304, SUS316, or SUS316L stainless steel wire rope, the mesh provides a strong, corrosion-resistant and visually open barrier for construction environments.

Depending on the project requirements, construction safety mesh can be configured for fall protection, falling object protection, temporary barriers, stair protection, platform protection, and construction access areas.

Arvemesh provides customized mesh openings, rope diameters, panel dimensions, stainless steel grades, edge configurations, and fixing arrangements according to project drawings and site requirements.

Request a Quote

What Is Construction Safety Mesh?

Construction safety mesh is a stainless steel rope mesh system used to provide additional protection around construction sites, temporary work areas, elevated platforms, open edges, stair openings, walkways, and other areas where site safety needs to be improved.

The mesh can be installed as a vertical or horizontal construction safety system, depending on the project design.

Typical applications include:

Construction site fall protection
Falling object protection
Temporary construction barriers
Construction platform protection
Stair and walkway protection
Open edge protection
Mezzanine protection during construction
Building renovation safety

Key Features of Construction Safety Mesh

High-Strength Stainless Steel Cable

Construction safety mesh is manufactured from stainless steel wire rope that provides a strong and flexible mesh structure.

Available stainless steel grades include:

SUS304
SUS304L
SUS316
SUS316L

The final rope diameter and mesh configuration should be selected according to the application, support structure, required loads, and project engineering requirements.

Flexible Construction

The cable mesh can adapt to:

Flat surfaces
Curved structures
Inclined structures
Irregular openings
Building edges
Staircases
Walkways
Structural frames

This flexibility makes it suitable for construction environments where rigid panels may be difficult to install.

High Visibility

The open diamond mesh structure allows light and air to pass through while maintaining a protective boundary.

This can be particularly useful around building facades, atriums, elevated walkways, and construction areas where maintaining visibility is important.

Corrosion Resistance

Stainless steel provides good resistance to moisture and atmospheric corrosion.

For outdoor construction projects, coastal environments, and areas exposed to salt spray, SUS316 or SUS316L can be selected for enhanced corrosion resistance.

Customizable Design

Construction safety mesh can be customized in:

Rope diameter
Mesh opening
Panel width
Panel height
Stainless steel grade
Mesh type
Edge configuration
Fixing method

Construction Safety Mesh Specifications

Arvemesh can manufacture stainless steel construction safety mesh according to project requirements.

Specification	Available Options
Material	SUS304 / SUS304L / SUS316 / SUS316L
Rope Construction	7 × 7 / 7 × 19
Rope Diameter	Approx. 1.2–5.0 mm, customized
Mesh Opening	Approx. 20–300 mm, customized
Mesh Shape	Diamond
Mesh Type	Ferrule / Knotted
Opening Angle	Commonly 60°, customized
Surface	Natural stainless steel / customized
Panel Width	Customized
Panel Height	Customized
Edge Configuration	Customized
Installation	Frame / cable / post / structural support

Common stainless steel rope mesh products use 304/316 stainless steel, 7×7 or 7×19 cable construction, and customized cable diameters and diamond openings.

For construction safety applications, the final specifications should always be determined according to the project design, support structure, applicable safety regulations, and required performance.

Construction Safety Mesh Applications

1. Construction Site Fall Protection

Stainless steel rope mesh can be installed around elevated construction areas where additional protection is required.

Potential locations include:

Building edges
Elevated platforms
Mezzanines
Stair openings
Walkways
Atriums
Temporary work areas

The complete system should be designed and installed according to the project’s safety requirements.

2. Falling Object Protection

Construction sites can create risks from tools, materials, or other objects falling from elevated areas.

Mesh barriers can be used as part of a project-specific system designed to help contain or reduce the risk of objects passing through protected areas.

The mesh opening should be selected according to the objects that need to be controlled and the applicable project requirements.

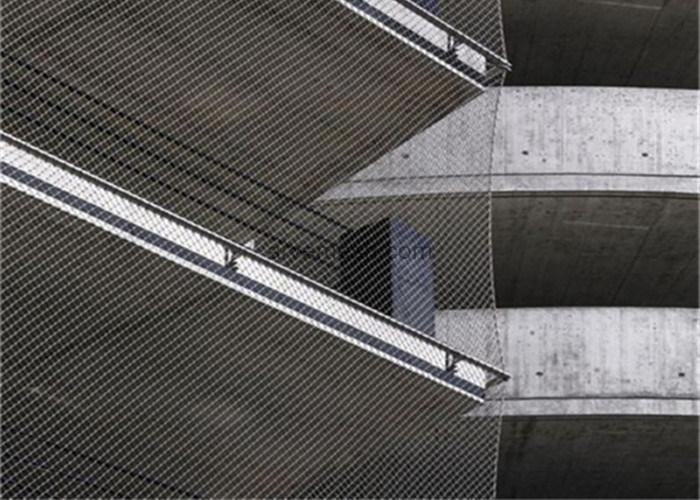

3. Vertical Construction Safety Mesh

Vertical safety mesh can be installed along:

Building facades
Construction platforms
Open building edges
Mezzanines
Staircases
Elevated walkways

Vertical stainless steel rope mesh provides an open protective barrier while maintaining visibility.

Stainless steel rope mesh has been used in vertical safety applications around buildings, bridges, warehouses, factories, and other commercial or industrial spaces.

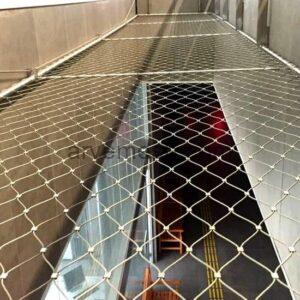

4. Horizontal Construction Safety Mesh

Horizontal safety mesh can be installed over or beneath selected areas where project-specific fall or falling-object protection is required.

Potential applications include:

Atriums
Skylight areas
Building openings
Elevated construction areas
Roof structures
Large interior spaces

Horizontal safety systems require careful consideration of support spacing, anchoring, mesh configuration, expected loads, and installation procedures.

5. Construction Stair Safety Mesh

Open staircases and stair landings can require additional protective infill during construction or as part of a permanent building design.

Stainless steel rope mesh can follow inclined stair structures and provide a visually open protective barrier.

It can be installed along:

Stair railings
Stair openings
Landings
Mezzanine edges
Stair balconies

6. Building Facade Safety Mesh

Construction safety mesh can be incorporated into building facade protection systems.

Its transparent structure allows light and visibility while creating a defined protective boundary.

Stainless steel rope mesh can also be incorporated into selected building renovation and construction facade safety systems where project-specific protection is required.

7. Mezzanine Safety Mesh

Mezzanine floors often contain open edges where additional protection may be required.

Stainless steel rope mesh can be installed between structural posts, frames, or support cables to create an open protective barrier.

A documented rope-mesh application has used vertical safety mesh around a mezzanine and building interior to provide protection while preserving visual openness.

8. Warehouse Construction Safety Mesh

Construction and renovation projects in warehouses may require temporary or permanent protection around:

Mezzanines
Loading platforms
Stairways
Elevated walkways
Open floor edges
Equipment areas

Stainless steel rope mesh can provide a flexible solution for these applications.

Construction Fall Protection Mesh

Construction fall protection mesh is used around construction sites, elevated work areas, open building edges, platforms, stair openings, mezzanines, and temporary work areas where additional protection is required.

A complete construction fall protection system may include:

Stainless steel rope mesh
Boundary cables
Support posts
Structural frames
Anchors
Ferrules
Turnbuckles
Fixing hardware

The final system should be designed according to the application, support structure, expected loads, installation conditions, and applicable local safety requirements.

Construction Site Safety Mesh

Construction sites have different safety requirements during different stages of a project.

A construction safety mesh system may be used to help separate:

Workers from open edges
Pedestrian areas from construction zones
Elevated work areas from lower levels
Equipment areas from access routes
Construction areas from public spaces

For temporary construction applications, the mesh and its support system should be inspected regularly and after severe weather or other events that may affect its condition.

Construction safety guidance commonly emphasizes inspection of mesh sheets, tensioning components, and supporting structures, particularly after heavy rain or strong winds.

Stainless Steel Construction Safety Mesh for Outdoor Projects

Outdoor construction projects may expose safety mesh to:

Rain
Humidity
UV exposure
Wind
Salt spray
Industrial environments
Temperature changes

SUS304 is suitable for many general environments.

For coastal or chloride-exposed locations, SUS316 or SUS316L is generally preferred because it offers improved resistance to chloride-related corrosion.

SUS304 vs. SUS316 Construction Safety Mesh

SUS304

SUS304 is a widely used stainless steel grade for general construction and architectural applications.

Suitable applications include:

Indoor construction areas
Commercial buildings
Warehouses
General outdoor projects
Urban construction
Architectural safety barriers

SUS316

SUS316 is commonly selected for more corrosive environments.

Suitable applications include:

Coastal construction
Waterfront buildings
Marine environments
High-humidity projects
Salt-exposed structures
Outdoor infrastructure

The correct grade should be selected according to actual environmental conditions and project specifications.

Custom Construction Safety Mesh

Every construction project has different dimensions and safety requirements.

Arvemesh provides customized stainless steel construction safety mesh according to drawings, dimensions, and project specifications.

Custom Rope Diameter

Different cable diameters can be selected according to the required application and engineering design.

Custom Mesh Opening

Mesh openings can be customized according to the required level of physical obstruction and project design.

Custom Panel Dimensions

Panels can be manufactured according to:

Building dimensions
Structural openings
Railing sections
Platform dimensions
Facade areas

Custom Edge Configuration

Mesh edges can be prepared for connection to:

Steel frames
Stainless steel frames
Posts
Support cables
Structural members

Custom Material Grade

Available stainless steel grades include:

SUS304 / SUS304L / SUS316 / SUS316L

Ferrule or Knotted Mesh

Arvemesh can provide ferrule and knotted stainless steel rope mesh according to the application and project requirements.

Construction Safety Mesh Installation

A typical project process includes:

Step 1 – Site Measurement

Measure the protected area and identify support points.

Step 2 – Application Assessment

Determine whether the mesh is required for:

Fall protection
Falling object protection
Railing infill
Vertical protection
Horizontal protection
Temporary construction protection

Step 3 – Specification Selection

Select:

Stainless steel grade
Rope diameter
Mesh opening
Mesh type
Panel dimensions

Step 4 – Support Structure

Prepare the required posts, frames, cables, anchors, or other structural supports.

Step 5 – Mesh Installation

Install the mesh using the approved fixing system.

Step 6 – Inspection

Check:

Mesh dimensions
Mesh tension
Edge connections
Fixing points
Support structures
Visible damage
Overall installation condition

For temporary construction protection, regular inspection is particularly important because weather, construction activity, and changes to the surrounding structure can affect the protective system.

Construction Safety Mesh for Architects and Contractors

Arvemesh can supply customized stainless steel rope mesh for:

Architects

Suitable for construction safety barriers, building renovation projects, facades, atriums, staircases, platforms, mezzanines, and other project-specific construction applications.

General Contractors

Customized mesh panels can be manufactured according to project dimensions and drawings.

Engineering Companies

Technical specifications can be discussed according to structural requirements and application conditions.

Construction Companies

Suitable for customized construction protection and building safety applications.

Distributors

OEM production and customized product configurations are available for wholesale projects.

Why Choose Arvemesh?

Arvemesh specializes in stainless steel rope mesh and customized wire mesh solutions for international architectural, construction, safety, and industrial applications.

We provide:

SUS304 stainless steel rope mesh
SUS316 stainless steel rope mesh
Ferrule rope mesh
Knotted rope mesh
Custom mesh openings
Custom rope diameters
Custom panel dimensions
Custom edge configurations
OEM production
Project-based customization
Export packaging
International shipping support

Our stainless steel rope mesh products are designed for applications including safety protection, railings, bridges, buildings, facades, and other architectural structures.

How to Order Construction Safety Mesh

To receive an accurate quotation, please provide:

Application:
Construction site / facade / mezzanine / stair / walkway / atrium / platform

Dimensions:
Length × height or individual panel dimensions

Mesh opening:
Required opening size, if specified

Rope diameter:
Required cable diameter, if specified

Material:
SUS304 / SUS316

Mesh type:
Ferrule / knotted

Quantity:
Number of panels or total square meters

Drawings:
CAD / PDF / sketches / project drawings

Installation structure:
Frame / post / cable / structural support

Frequently Asked Questions

What is construction safety mesh?

Construction safety mesh is a stainless steel rope mesh system used for safety protection on construction sites, temporary work areas, elevated platforms, open edges, stairways, walkways, and other construction areas.

What is construction site safety mesh used for?

Construction site safety mesh can be used for fall protection, falling object protection, temporary barriers, construction platforms, stairways, walkways, mezzanines, and open building edges.

Can construction safety mesh be used for temporary projects?

Yes. Stainless steel rope mesh can be configured for temporary construction protection when the mesh, support structure, fixing method, and inspection procedures are designed for the intended application.

What is the difference between construction safety mesh and architectural fall protection mesh?

Construction safety mesh is primarily intended for construction sites, temporary work areas, renovation projects, platforms, open edges, and site safety applications. Architectural fall protection mesh is primarily designed for permanent architectural spaces such as balconies, staircases, bridges, atriums, and other completed building structures.

Is stainless steel rope mesh suitable for construction sites?

Yes. Stainless steel rope mesh can be used in construction and building applications where a flexible, transparent, corrosion-resistant protective mesh is required.

What stainless steel grades are available?

Arvemesh can provide SUS304, SUS304L, SUS316, and SUS316L depending on project requirements.

Is SUS316 better for outdoor construction?

For coastal, marine, salt-exposed, or highly humid environments, SUS316 or SUS316L is generally preferred because of its improved corrosion resistance.

Can construction safety mesh prevent falling objects?

It can be incorporated into a project-specific falling-object protection system. The mesh opening, rope diameter, support structure, fixing system, and installation must be selected according to the objects being controlled and applicable safety requirements.

Can construction safety mesh be used vertically?

Yes. Vertical stainless steel rope mesh is suitable for building edges, facades, mezzanines, staircases, walkways, and other vertical protection applications.

Can it be installed horizontally?

Yes. Stainless steel rope mesh can be configured as a horizontal safety system for selected construction and architectural applications, subject to appropriate engineering and support design.

Can the mesh size be customized?

Yes. Rope diameter, mesh opening, panel dimensions, material grade, and edge configuration can be customized.

Can you manufacture according to construction drawings?

Yes. CAD drawings, PDF drawings, sketches, and dimensioned project drawings can be used to develop customized mesh panels.

Is Construction Safety Mesh suitable for temporary construction protection?

It can be used for temporary applications when the mesh, support structure, fixing method, inspection schedule, and installation are designed specifically for the intended temporary protection system.

How do I request a quotation?

Send us your application, dimensions, mesh opening, rope diameter, stainless steel grade, quantity, and project drawings.

Arvemesh can review the requirements and recommend a suitable stainless steel construction safety mesh configuration.

Get a Quote for Construction Safety Mesh

Looking for a stainless steel construction safety mesh manufacturer?

Arvemesh provides customized SUS304 and SUS316 stainless steel rope mesh for construction safety, fall protection, falling-object protection, building facades, mezzanines, stairs, walkways, and architectural applications.

Send us your project drawings and requirements for a customized quotation.
