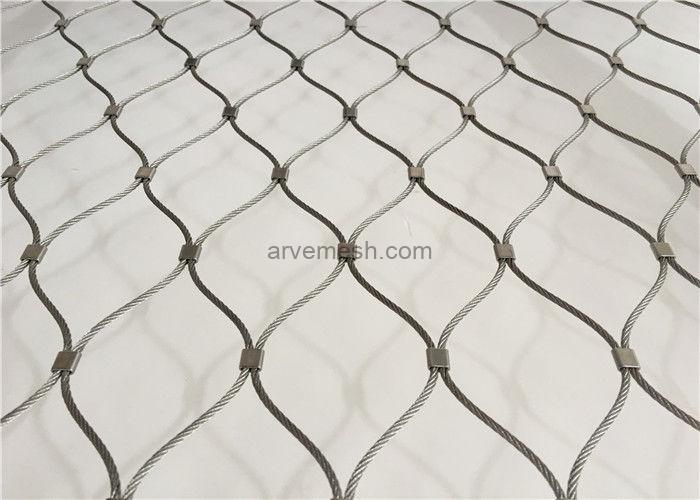

Diamond Knotted Rope Mesh
Diamond Knotted Rope Mesh is a flexible and high-strength stainless steel mesh manufactured from stainless steel wire rope using a knotted construction. Its distinctive diamond-shaped openings provide an excellent combination of strength, flexibility, visibility, and durability.
Also known as stainless steel diamond rope mesh, knotted stainless steel mesh, or stainless steel zoo mesh, this type of cable mesh is widely used for zoo animal enclosures, aviaries, wildlife parks, animal cages, safety barriers, balustrades, and architectural structures.
Available in SUS304 and SUS316 stainless steel, Diamond Knotted Rope Mesh can be manufactured with different cable diameters and mesh openings according to project requirements.
What Is Diamond Knotted Rope Mesh?
Diamond Knotted Rope Mesh is a flexible mesh system made by interlocking stainless steel wire ropes and forming diamond-shaped openings.
Unlike rigid welded mesh panels, the knotted rope structure provides flexibility and allows the mesh to adapt to curved surfaces, irregular enclosure structures, and customized architectural designs.
The diamond pattern also provides a visually open structure, making it particularly suitable for projects where visibility, ventilation, and natural lighting are important.
Typical applications include:
- Zoo animal enclosures
- Wildlife park fencing
- Bird aviaries
- Primate enclosures
- Large animal cages
- Safari park mesh
- Aquarium and marine facilities
- Balcony and stair railings
- Safety barriers
- Green wall structures
- Architectural cable mesh
Stainless Steel Diamond Rope Mesh Specifications
Diamond Knotted Rope Mesh can be customized according to the required application.
| Specification | Options |
|---|---|
| Material | SUS304 / SUS316 Stainless Steel |
| Mesh Type | Knotted Rope Mesh |
| Opening Shape | Diamond |
| Cable Diameter | 1.2 mm – 4.0 mm |
| Mesh Opening | 20 mm – 120 mm+ |
| Cable Construction | 7 × 7 / 7 × 19 |
| Surface | Natural / Polished |
| Installation | Frame Mounted / Cable Supported |
| Mesh Configuration | Custom |
| Application | Zoo / Aviary / Architecture / Safety |
The exact cable diameter and mesh opening should be selected according to the application, enclosure design, animal species, structural requirements, and local engineering standards.
Diamond Mesh Opening
The diamond opening is one of the defining characteristics of stainless steel knotted rope mesh.
Common opening sizes include:
- 20 × 20 mm
- 25 × 25 mm
- 30 × 30 mm
- 38 × 38 mm
- 50 × 50 mm
- 60 × 60 mm
- 76 × 76 mm
- 90 × 90 mm
- 100 × 100 mm
- 120 × 120 mm
For diamond rope mesh, the actual opening dimensions can also be expressed according to the width × height of the diamond. The opening size should therefore be confirmed with the manufacturer before ordering.
For example, stainless steel rope mesh products commonly use openings such as 38 × 66 mm, 50 × 86 mm, and other rectangular measurements created by the diamond orientation.
SUS304 Diamond Knotted Rope Mesh
SUS304 stainless steel is a popular material for general-purpose diamond rope mesh.
It provides:
- Good corrosion resistance
- High mechanical strength
- Excellent durability
- Good cost performance
- Low maintenance
- Suitable outdoor performance
SUS304 Diamond Knotted Rope Mesh is commonly used for:
- Zoo fencing
- Bird aviaries
- Animal cages
- Wildlife enclosures
- Architectural railings
- Safety barriers
- Green wall systems
For most standard outdoor projects, SUS304 provides a good balance between performance and cost.
SUS316 Diamond Knotted Rope Mesh
SUS316 stainless steel is recommended for environments where higher corrosion resistance is required.
Typical applications include:
- Coastal zoos
- Marine parks
- Aquariums
- Tropical environments
- High-humidity areas
- Seaside architecture
- Long-term outdoor installations
SUS316 is particularly suitable where the mesh may be exposed to moisture, salt spray, or more aggressive environmental conditions.
Diamond Knotted Rope Mesh for Zoo Enclosures
One of the most important applications of Diamond Knotted Rope Mesh is zoo animal enclosure fencing.
The open diamond structure provides excellent visibility between visitors and animals while creating a strong physical barrier.
Stainless steel rope mesh is commonly used for:
Lion Enclosure Mesh
The high-strength stainless steel rope structure can be used for large predator enclosure systems when the cable diameter, mesh opening, support structure, and installation method are properly engineered.
Tiger Enclosure Mesh
Tiger habitats require strong and reliable containment systems. Stainless steel rope mesh can provide a flexible enclosure surface with good visibility.
Monkey Enclosure Mesh
The flexible structure is particularly suitable for primate habitats because the mesh can be installed over large or irregular enclosure structures.
Leopard Enclosure Mesh
Diamond knotted mesh can be used for wildlife and big-cat enclosure systems where transparency and durability are important.
Large Animal Enclosure Mesh
The mesh can also be incorporated into custom habitats for other large animals and wildlife park applications.
For animal enclosure projects, the final specification should always be determined based on the animal species, enclosure dimensions, loading conditions, support structure, and applicable safety requirements.
Diamond Knotted Rope Mesh for Aviaries
Stainless steel diamond rope mesh is also widely used as aviary mesh.
The diamond openings allow natural light and airflow to enter the enclosure while providing a physical barrier.
Applications include:
- Parrot aviary mesh
- Macaw aviary mesh
- Eagle aviary mesh
- Cockatoo aviary mesh
- Bird park mesh
- Walk-in aviary mesh
- Zoo bird enclosure mesh
- Wildlife rehabilitation enclosures
Smaller mesh openings can be selected for smaller birds, while larger openings can be used for larger birds when appropriate.
Architectural Diamond Rope Mesh
Diamond Knotted Rope Mesh is also increasingly used in modern architecture.
Its lightweight appearance creates a visually transparent barrier without making a structure look heavy or enclosed.
Architectural applications include:
- Staircase balustrades
- Balcony railing
- Bridge barriers
- Safety railing
- Building facades
- Green wall support
- Interior partitions
- Decorative screens
- Landscape structures
The flexible cable mesh can also be installed on curved or irregular structures, giving architects more freedom when designing complex spaces.
Key Advantages of Diamond Knotted Rope Mesh
High Strength
Stainless steel wire rope provides high tensile strength and good resistance to mechanical loads.
Flexible Construction
The knotted structure allows the mesh to flex and adapt to different installation conditions.
Diamond Opening
The diamond-shaped pattern provides an open appearance with excellent visibility and ventilation.
Corrosion Resistance
SUS304 and SUS316 stainless steel provide good resistance to outdoor environmental conditions.
Long Service Life
Stainless steel construction offers excellent durability and reduces the need for frequent replacement.
Low Visual Obstruction
The open mesh design is ideal for zoos, aviaries, architectural projects, and safety applications where visibility is important.
Customizable
Cable diameter, mesh opening, panel dimensions, mesh configuration, and stainless steel grade can be customized according to project requirements.
7 × 7 and 7 × 19 Wire Rope
The wire rope construction is another important specification when selecting stainless steel diamond rope mesh.
7 × 7 Wire Rope
7 × 7 construction is commonly used for lighter and general-purpose rope mesh applications.
It provides:
- Good flexibility
- Good strength
- Clean appearance
- Suitable performance for many aviary and architectural applications
7 × 19 Wire Rope
7 × 19 construction contains more strands and is commonly selected for applications requiring greater flexibility and higher load performance.
It can be considered for heavier-duty applications and larger animal enclosure projects.
The appropriate cable construction should be selected together with the wire diameter and mesh opening rather than considering any specification separately.
Diamond Knotted Rope Mesh vs Ferrule Rope Mesh
Both products use stainless steel wire rope and can create diamond-shaped openings, but their connection methods are different.
| Feature | Knotted Rope Mesh | Ferrule Rope Mesh |
|---|---|---|
| Connection | Knotted | Ferrule sleeve |
| Appearance | Natural woven appearance | Clean ferrule appearance |
| Flexibility | Excellent | Excellent |
| Material | SUS304 / SUS316 | SUS304 / SUS316 |
| Diamond Opening | Yes | Yes |
| Zoo Enclosures | Yes | Yes |
| Aviaries | Yes | Yes |
| Architecture | Yes | Yes |
| Custom Sizes | Yes | Yes |
Ferrule rope mesh uses metal ferrules to connect neighboring cables, while knotted rope mesh uses a mechanical knot connection.
The best option depends on the project’s structural requirements, appearance, installation method, and budget.
How to Choose Diamond Knotted Rope Mesh
Before ordering, buyers should confirm several important specifications.
1. Stainless Steel Grade
Choose SUS304 for general applications or SUS316 for coastal, marine, and high-humidity environments.
2. Cable Diameter
The cable diameter should be selected according to the required strength and application.
Common options include:
- 1.2 mm
- 1.6 mm
- 2.0 mm
- 2.4 mm
- 3.2 mm
- 4.0 mm
3. Mesh Opening
Select the opening according to the animal species, safety requirements, visibility requirements, and project design.
4. Mesh Dimensions
For large projects, provide the required:
- Width
- Height
- Number of panels
- Boundary configuration
- Installation direction
5. Supporting Structure
The rope mesh itself is only one part of the enclosure system. Posts, frames, boundary cables, connectors, and anchoring systems should also be properly designed.
Custom Diamond Knotted Rope Mesh Manufacturer
Arvemesh supplies customized stainless steel rope mesh solutions for international B2B customers.
We can customize:
- Stainless steel grade
- Cable diameter
- Mesh opening
- Mesh dimensions
- Mesh configuration
- Edge treatment
- Installation requirements
- Packaging
Our Diamond Knotted Rope Mesh can be supplied for individual panels, complete enclosure projects, architectural projects, and large-volume orders.
For project quotations, customers can provide drawings or basic specifications such as cable diameter, mesh opening, panel dimensions, quantity, material grade, and application.
Applications
Diamond Knotted Rope Mesh can be used in a wide range of projects:
Zoo & Wildlife
- Zoo mesh
- Animal enclosure mesh
- Lion enclosure mesh
- Tiger enclosure mesh
- Monkey enclosure mesh
- Leopard enclosure mesh
- Wildlife park mesh
- Safari park mesh
Bird & Aviary
- Bird aviary mesh
- Parrot aviary mesh
- Eagle aviary mesh
- Macaw enclosure mesh
- Bird park mesh
Architecture
- Stainless steel railing mesh
- Balustrade rope mesh
- Staircase safety mesh
- Balcony mesh
- Green wall mesh
- Architectural cable mesh
Safety & Protection
- Safety barriers
- Fall protection
- Protective fencing
- Animal containment systems
- Landscape safety structures
Why Choose Arvemesh?
Arvemesh specializes in stainless steel wire mesh and rope mesh products for international projects.
We understand that different applications require different combinations of wire rope diameter, mesh opening, stainless steel grade, panel dimensions, and installation method.
Our custom service supports:
- SUS304 and SUS316 materials
- Custom mesh openings
- Custom panel dimensions
- OEM orders
- Project-based quotations
- Technical specification support
- Export packaging
- International B2B orders
Request a Diamond Knotted Rope Mesh Quote
Looking for a Diamond Knotted Rope Mesh manufacturer for your zoo, aviary, architectural, or animal enclosure project?
Send us your requirements:
- Stainless steel grade
- Cable diameter
- Mesh opening
- Panel dimensions
- Quantity
- Application
- Project drawings, if available
Our team can recommend a suitable stainless steel diamond rope mesh specification for your project.
Contact Arvemesh today for a quotation for Diamond Knotted Rope Mesh.
