Stainless Steel Fall Protection Rope Mesh
Stainless Steel Fall Protection Rope Mesh for Buildings, Bridges and Elevated Areas
Fall Protection Rope Mesh is a flexible stainless steel cable mesh system designed for applications where additional protection against falls or falling objects is required.
Manufactured from high-quality SUS304, SUS316, or SUS316L stainless steel wire rope, the mesh combines strength, flexibility, corrosion resistance, transparency, and a clean architectural appearance.
The open diamond-shaped structure provides a protective barrier while maintaining visibility and airflow. Depending on the project design, stainless steel rope mesh can be installed vertically or horizontally around balconies, staircases, bridges, atriums, walkways, mezzanines, facades, platforms, and other elevated areas.
Arvemesh provides custom fall protection rope mesh with different rope diameters, mesh openings, panel dimensions, stainless steel grades, and edge configurations.
Request a Quote
What Is Fall Protection Rope Mesh?
Fall Protection Rope Mesh is a flexible safety mesh manufactured from interconnected stainless steel wire ropes.
It is designed to be incorporated into a complete protective system around elevated or open areas.
Unlike rigid metal panels, stainless steel rope mesh can follow curved, inclined, and irregular structures while maintaining an open visual appearance.
Typical applications include:
- Balcony fall protection
- Staircase protection
- Bridge safety barriers
- Atrium protection
- Mezzanine protection
- Elevated walkway protection
- Building facade protection
- Observation platform barriers
- Construction safety
- Horizontal safety systems
- Vertical safety systems
Stainless steel rope mesh is used for both vertical and horizontal fall-protection applications, as well as bridge, balcony, building, and other safety structures.
Key Features of Stainless Steel Fall Protection Rope Mesh
High-Strength Stainless Steel Cable
The mesh is manufactured from stainless steel wire rope with different cable constructions and diameters.
Common options include:
- SUS304
- SUS304L
- SUS316
- SUS316L
The final rope diameter should be selected according to the project application, dimensions, support structure, and engineering requirements.
Flexible Mesh Structure
The interconnected cable structure allows the mesh to adapt to:
- Curved structures
- Sloped structures
- Staircases
- Irregular openings
- Building edges
- Bridge railings
- Architectural frames
This flexibility makes rope mesh suitable for projects where rigid welded panels are difficult to install.
Transparent Safety Barrier
The diamond-shaped mesh provides a protective infill while maintaining visibility.
This is particularly valuable for:
- Observation platforms
- Scenic bridges
- Balconies
- Atriums
- Architectural walkways
- Building facades
The transparent structure allows light and air to pass through while creating a defined protective boundary.
Corrosion Resistance
Stainless steel provides excellent resistance to atmospheric corrosion and is suitable for many indoor and outdoor applications.
For coastal, marine, or salt-exposed projects, SUS316 or SUS316L can be selected for enhanced corrosion resistance.
Customizable Design
Arvemesh can customize:
- Rope diameter
- Mesh opening
- Mesh dimensions
- Stainless steel grade
- Mesh type
- Edge configuration
- Fixing arrangement
Fall Protection Rope Mesh Specifications
| Specification | Available Options |
|---|---|
| Material | SUS304 / SUS304L / SUS316 / SUS316L |
| Rope Construction | 7 × 7 / 7 × 19 |
| Rope Diameter | Approx. 1.2–5.0 mm, customized |
| Mesh Opening | Approx. 20–300 mm, customized |
| Mesh Shape | Diamond |
| Mesh Type | Ferrule / Knotted |
| Opening Angle | Commonly 60°, customized |
| Surface | Natural stainless steel / customized |
| Panel Width | Customized |
| Panel Height | Customized |
| Edge Configuration | Customized |
| Installation | Frame / post / cable / structural support |
Industry stainless steel rope mesh specifications commonly include 304/316 stainless steel, 7×7 or 7×19 cable construction, cable diameters around 1.0–5.0 mm, and customized diamond openings.
Note: These are general product ranges. The final specification for a fall-protection project should be determined according to the actual application, support structure, design loads, local regulations, and engineering requirements.
Vertical Fall Protection Rope Mesh
Vertical Fall Protection Mesh is installed vertically around an elevated or open area.
Typical applications include:
- Balconies
- Staircases
- Bridges
- Mezzanines
- Building facades
- Elevated walkways
- Industrial platforms
- Atriums
Vertical rope mesh can be fixed between posts, frames, cables, or other structural supports.
A stainless steel vertical safety mesh project has been used around a mezzanine and building interior to help prevent accidental falls and falling objects while maintaining an open visual environment.
Horizontal Fall Protection Rope Mesh
Horizontal Fall Protection Mesh is configured horizontally over or beneath selected areas where a project requires protection against falls or falling objects.
Potential applications include:
- Atriums
- Skylights
- Roof openings
- Elevated construction areas
- Building interiors
- Large ceiling openings
- Industrial facilities
Horizontal safety mesh requires careful consideration of:
- Support spacing
- Anchor points
- Mesh dimensions
- Rope diameter
- Edge restraint
- Expected loads
- Installation method
The complete system should be designed and verified for its intended application.

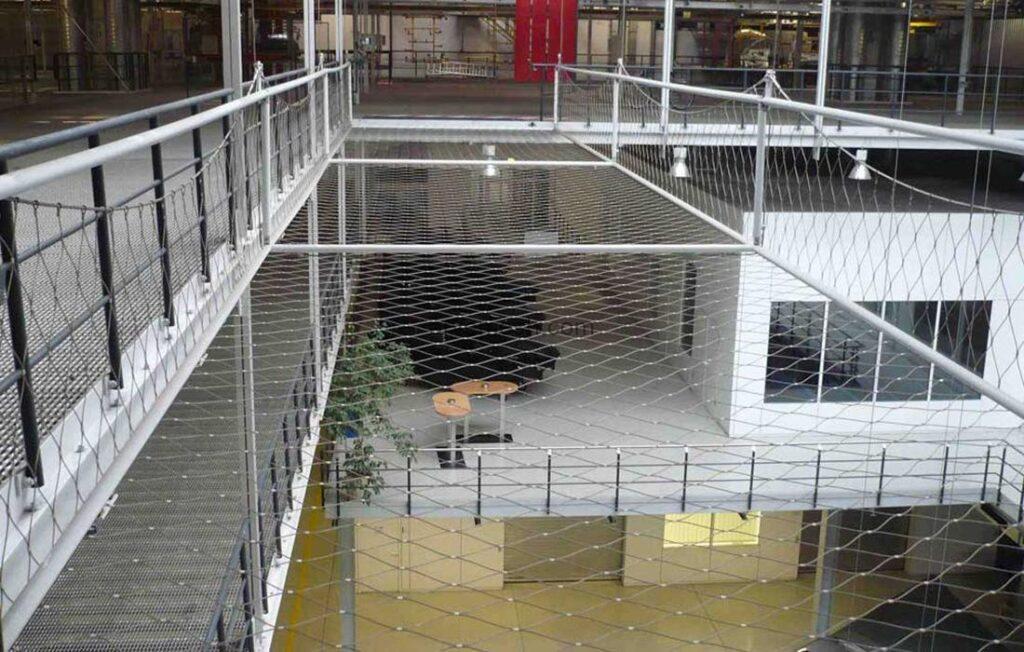

Stainless steel rope mesh is used as horizontal safety protection in applications such as balconies and skylights where transparency and low visual impact are important.
Fall Prevention Rope Mesh Applications
1. Balcony Fall Protection
Stainless steel rope mesh can be used as balcony railing infill and as part of a project-specific fall-protection system.
Its transparent structure provides a protective barrier without creating the visual obstruction of a solid panel.
Related application: Balcony Safety Mesh
2. Staircase Fall Protection
Open staircases can use stainless steel rope mesh between posts and handrails to create a protective infill.
The flexible mesh can follow straight, curved, or inclined staircase configurations.
Related application: Stair Safety Mesh
3. Bridge Fall Protection
Pedestrian bridges and elevated walkways can use stainless steel rope mesh as railing infill or protective barrier mesh.
The open structure maintains visibility while providing a defined barrier.
Related application: Bridge Safety Mesh
4. Atrium Fall Protection
Large indoor atriums often contain open edges and multiple elevated levels.
Vertical or horizontal stainless steel rope mesh can be integrated into the architecture to provide additional protection while preserving the open appearance of the atrium.
5. Mezzanine Fall Protection
Mezzanine floors can have open edges overlooking lower levels.
Stainless steel rope mesh can be installed between structural supports to create a transparent protective barrier.
This application can be suitable for:
- Warehouses
- Offices
- Factories
- Commercial buildings
- Industrial facilities
6. Elevated Walkway Safety
Elevated walkways and platforms can use stainless steel rope mesh as railing infill.
Applications include:
- Industrial walkways
- Airport facilities
- Commercial buildings
- Public facilities
- Observation platforms
- Infrastructure projects
7. Building Facade Protection
Stainless steel rope mesh can be used vertically along selected building facade areas where additional protection is required.
It can provide protection without completely covering the facade with a solid barrier.
Stainless steel rope mesh is also used for facade protection and architectural facade applications.
8. Construction Fall Protection
During construction or renovation, stainless steel rope mesh can be incorporated into project-specific temporary or permanent protection systems.
Potential applications include:
- Building edges
- Stair openings
- Mezzanines
- Elevated platforms
- Atriums
- Walkways
For temporary construction applications, the complete support and fixing system should be designed for the intended use and inspected regularly.
Fall Protection Mesh for Construction Sites
Construction projects can contain numerous elevated work areas and open edges.
A stainless steel rope mesh system may be used to create protective barriers around:
- Open floor edges
- Construction platforms
- Temporary walkways
- Stair openings
- Building edges
- Mezzanine areas
The mesh should not be considered a standalone safety system.
The complete installation should include suitable:
- Support structures
- Anchors
- Boundary cables
- Fixing hardware
- Edge connections
The system should be installed and inspected according to the applicable construction safety requirements.
Stainless Steel Fall Protection Mesh for Bridges and Walkways
Bridges and elevated walkways require protective barriers that balance safety and visibility.
Stainless steel rope mesh is suitable for these applications because the diamond opening provides a transparent barrier.
Advantages include:
- High transparency
- Flexible installation
- Corrosion resistance
- Low visual obstruction
- Custom mesh dimensions
- Modern architectural appearance
For outdoor bridges, selecting the appropriate stainless steel grade is particularly important.
SUS304 vs. SUS316 Fall Protection Rope Mesh
SUS304 Stainless Steel
SUS304 is suitable for many general indoor and outdoor applications.
Common applications include:
- Indoor atriums
- Staircases
- General building projects
- Commercial buildings
- Warehouses
- Urban infrastructure
SUS316 Stainless Steel
SUS316 provides improved resistance to chloride-related corrosion.
It is generally preferred for:
- Coastal projects
- Waterfront buildings
- Marine environments
- Seaside bridges
- Outdoor platforms
- Salt-exposed structures
For demanding outdoor environments, SUS316 or SUS316L can provide a longer-lasting material solution.
Custom Fall Protection Rope Mesh
Every project has different dimensions and structural requirements.
Arvemesh provides customized fall protection rope mesh according to project drawings and specifications.
Custom Rope Diameter
Different cable diameters can be selected according to the application and engineering requirements.
Custom Mesh Opening
Mesh openings can be customized according to the required protection, visibility, and project design.
Custom Panel Dimensions
Panels can be manufactured according to:
- Width
- Height
- Curved sections
- Sloped sections
- Irregular openings
Custom Stainless Steel Grade
Available options include:
- SUS304
- SUS304L
- SUS316
- SUS316L
Ferrule Rope Mesh
Ferrule-connected mesh provides a clean and consistent diamond pattern and is widely used in architectural applications.
Knotted Rope Mesh
Knotted rope mesh provides an alternative connection style and can be customized for different architectural and safety applications.
Arvemesh’s stainless steel rope mesh product range supports customized mesh openings, cable diameters, panel dimensions, installation methods, and stainless steel grades.
Fall Protection Rope Mesh Installation
A typical project process includes:
Step 1 – Site Assessment
Identify the area requiring protection and determine the dimensions, support points, and installation conditions.
Step 2 – Application Selection
Determine whether the mesh will be used for:
- Vertical fall protection
- Horizontal fall protection
- Railing infill
- Falling-object protection
- Construction safety
- Architectural protection
Step 3 – Specification Selection
Select:
- Stainless steel grade
- Rope diameter
- Mesh opening
- Mesh type
- Panel dimensions
Step 4 – Support Structure
Prepare the required:
- Posts
- Frames
- Boundary cables
- Anchors
- Fixing points
Step 5 – Mesh Installation
Install and connect the rope mesh according to the approved system design.
Step 6 – Final Inspection
Inspect:
- Mesh dimensions
- Edge connections
- Fixing points
- Support structures
- Mesh tension
- Visible damage
For safety-critical applications, installation and final inspection should be performed by qualified personnel according to applicable local requirements.
Fall Protection Rope Mesh vs. Traditional Safety Barriers
| Feature | Stainless Steel Rope Mesh | Solid Metal Barrier |
|---|---|---|
| Transparency | Excellent | Low |
| Flexibility | High | Low |
| Curved Structures | Suitable | More difficult |
| Visual Impact | Low | High |
| Custom Mesh Opening | Yes | No |
| Airflow | Excellent | Limited |
| Architectural Appearance | Modern | Solid |
| Outdoor Use | Suitable | Suitable |
| Corrosion Resistance | Excellent with suitable grade | Depends on material/coating |
| Custom Dimensions | Yes | Yes |
Rope mesh is particularly attractive when a project requires both protective functionality and visual openness.
Why Choose Arvemesh?
Arvemesh specializes in stainless steel rope mesh and customized cable mesh solutions for architectural, construction, safety, and industrial applications.
We provide:
- SUS304 stainless steel rope mesh
- SUS316 stainless steel rope mesh
- Ferrule rope mesh
- Knotted rope mesh
- Custom mesh openings
- Custom rope diameters
- Custom panel dimensions
- Custom edge configurations
- OEM production
- Project-based customization
- Export packaging
- International shipping support
Our stainless steel rope mesh is designed for applications including fall protection, railing systems, bridge safety, building protection, balconies, staircases, and other architectural structures.
How to Order Fall Protection Rope Mesh
To receive an accurate quotation, provide:
Application:
Balcony / staircase / bridge / atrium / mezzanine / walkway / construction / facade
Orientation:
Vertical / horizontal
Dimensions:
Length × height or individual panel dimensions
Mesh opening:
Required opening size, if specified
Rope diameter:
Required cable diameter, if specified
Material:
SUS304 / SUS316
Mesh type:
Ferrule / knotted
Quantity:
Number of panels or total square meters
Drawings:
CAD / PDF / project sketches
Support structure:
Frame / post / cable / structural system
Frequently Asked Questions
What is Fall Protection Rope Mesh?
Fall Protection Rope Mesh is a stainless steel cable mesh system used as part of protective barriers around elevated areas such as balconies, bridges, staircases, atriums, mezzanines, and walkways.
What is Fall Protection Rope Mesh used for?
It can be used for vertical and horizontal protection, balcony barriers, bridge railings, staircase protection, mezzanine protection, atrium protection, construction safety, and falling-object protection.
Is stainless steel rope mesh suitable for fall protection?
It can be incorporated into a properly designed fall-protection system. The complete system must consider the mesh, rope diameter, opening, support structure, fixing method, expected loads, and applicable regulations.
What is the difference between fall protection and fall prevention?
Fall prevention generally refers to measures designed to prevent a person from reaching or falling through an opening, while fall protection is a broader term covering systems intended to reduce the consequences or risk associated with falls. The exact terminology and requirements depend on the applicable safety regulations.
Can rope mesh be used vertically?
Yes. Vertical stainless steel rope mesh is commonly used around balconies, bridges, staircases, mezzanines, facades, and walkways.
Can rope mesh be installed horizontally?
Yes. Horizontal rope mesh can be used for selected roof, skylight, atrium, and elevated-area protection applications when properly engineered.
What stainless steel grade should I choose?
SUS304 is suitable for many general applications. SUS316 or SUS316L is generally preferred for coastal, marine, salt-exposed, and high-humidity environments.
Can the mesh opening be customized?
Yes. Mesh opening, rope diameter, panel dimensions, and other specifications can be customized.
Can the rope mesh follow curved structures?
Yes. The flexible cable construction allows stainless steel rope mesh to adapt to curved, sloped, and irregular structures.
Can you manufacture according to drawings?
Yes. Arvemesh can manufacture custom rope mesh according to CAD drawings, PDF drawings, dimensions, or project sketches.
Is Fall Protection Rope Mesh suitable for construction sites?
It can be used in project-specific construction protection systems for areas such as building edges, mezzanines, stair openings, walkways, and elevated platforms.
How do I get a quotation?
Send us your application, dimensions, orientation, mesh opening, rope diameter, stainless steel grade, quantity, and drawings.
Arvemesh can review your requirements and provide a customized fall protection rope mesh solution.
Get a Quote for Fall Protection Rope Mesh
Looking for a stainless steel fall protection rope mesh manufacturer?
Arvemesh provides customized SUS304 and SUS316 stainless steel rope mesh for fall protection, fall prevention, bridge safety, balcony protection, staircase safety, construction protection, atriums, walkways, and architectural applications.
Send us your project dimensions and requirements for a customized quotation.
Request a Quote
Contact Arvemesh for Custom Stainless Steel Fall Protection Rope Mesh.
