Stainless Steel Ferrule Rope Mesh: Durable Custom Cable Mesh Solution for Architecture and Safety Applications
304 Stainless Steel Wire Mesh
304 stainless steel is the most versatile and widely used austenitic stainless steel grade. Our 304 wire mesh offers excellent corrosion resistance, superior formability, and outstanding weldability — making it the standard choice for general-purpose wire mesh applications across all industries.
Material
304 SS
Mesh Count
1 - 500
Wire Diameter
0.02 - 8mm
Weave Type
Plain/Twill
Width
1m / 1.22m
Standard
ASTM E2016
304 stainless steel wire mesh is woven from AISI 304 (UNS S30400) stainless steel wire, containing 18% chromium and 8% nickel. This composition provides excellent corrosion resistance in atmospheric environments, fresh water, and mild chemical exposures.
Our 304 wire mesh is manufactured on precision CNC looms, ensuring consistent mesh count and uniform openings. Every roll undergoes 100% inspection for mesh accuracy, wire diameter, and surface quality before shipping.
Available in three weaving patterns:
Plain Weave — Each warp wire passes alternately over and under each weft wire. Most common and economical pattern.
Twill Weave — Each warp wire passes over two and under two weft wires. Allows heavier wire with finer mesh.
Dutch Weave — Warp wires are heavier, weft wires are finer. Creates very small openings for fine filtration.
Excellent Corrosion Resistance
18% Cr + 8% Ni provides outstanding resistance to atmospheric corrosion, fresh water, and many mild chemicals.
Superior Formability
Austenitic structure allows deep drawing, bending, and stamping without cracking or work hardening issues.
Temperature Resistance
Service temperature range from -196°C to 800°C. Maintains strength and corrosion resistance at elevated temperatures.
Hygienic & Cleanable
Smooth, non-porous surface prevents bacterial adhesion. Ideal for food, pharmaceutical, and sanitary applications.
Chemical Composition (%)
Element
C
Cr
Ni
Mn
Si
P
S
Min
-
18.0
8.0
-
-
-
-
Max
0.08
20.0
10.5
2.0
0.75
0.045
0.03
Mechanical Properties
Property
Tensile Strength
Yield Strength
Elongation
Hardness (HV)
Value
≥515 MPa
≥205 MPa
≥40%
≤200
Common Specifications
Mesh
Wire Dia. (mm)
Opening (mm)
Open Area (%)
Weight (kg/m²)
Width
10
0.50
2.04
83.0
0.52
1m/1.22m
20
0.30
0.97
75.6
0.37
1m/1.22m
40
0.18
0.455
66.8
0.27
1m/1.22m
60
0.12
0.303
66.5
0.19
1m/1.22m
80
0.10
0.218
61.2
0.19
1m/1.22m
100
0.08
0.174
61.2
0.16
1m/1.22m
150
0.06
0.109
53.8
0.14
1m/1.22m
200
0.05
0.077
47.5
0.13
1m
300
0.035
0.050
44.6
0.09
1m
400
0.025
0.039
38.4
0.06
1m
Petrochemical Filtration
Catalyst recovery, fluid bed support, gas-liquid separation in refineries and chemical plants.
Food Processing
Strainers, baskets, conveyor belts, and sorting screens for food-grade applications.
Pharmaceutical
Filter elements, centrifuge screens, and drying trays for API and formulation processes.
Architecture & Design
Decorative facades, privacy screens, railing infill panels, and sun shading mesh.
01
Raw Material Test
Spectrometer analysis for chemical composition verification
02
In-Process Check
Mesh count & wire diameter monitoring during weaving
03
Final Inspection
100% opening size, surface quality, and dimensional check
Roll Packaging
Waterproof paper inside → plastic film → hessian cloth → wooden case
304 SS wire mesh can operate continuously at temperatures up to 870°C (1600°F) in intermittent service and 925°C (1700°F) in continuous service. For cryogenic applications, it remains tough down to -196°C.
304 SS has moderate corrosion resistance in marine environments but is not recommended for continuous saltwater exposure. For marine applications, 316 SS with molybdenum is strongly recommended.
Yes, 304 SS has excellent weldability using all standard welding methods (TIG, MIG, resistance welding). No post-weld annealing is required for most applications, though it may improve corrosion resistance.

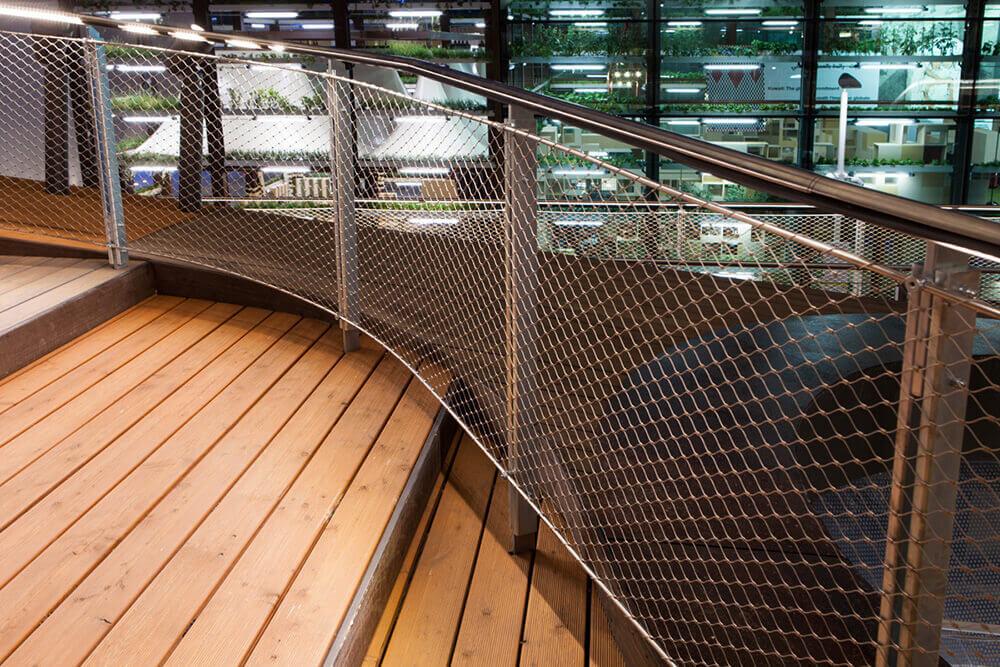

Stainless Steel Ferrule Rope Mesh is a high-performance flexible mesh system manufactured from premium stainless steel wire ropes and ferrule fittings. It combines excellent strength, corrosion resistance and modern appearance, making it an ideal solution for architectural, industrial and safety applications.
As a professional stainless steel rope mesh manufacturer, we provide customized cable mesh solutions using high-quality SUS304 and SUS316 stainless steel materials to meet different project requirements worldwide.
What Is Stainless Steel Ferrule Rope Mesh?
Stainless Steel Ferrule Rope Mesh is made by connecting stainless steel wire ropes with metal ferrule sleeves to create a flexible diamond-shaped mesh structure.
Compared with traditional rigid wire mesh, ferrule rope mesh offers better flexibility, lightweight construction and three-dimensional adaptability. The unique cable structure allows it to be installed on curved surfaces and complex architectural designs.
Main components include:
Stainless steel wire rope
Ferrule sleeves
Mesh panels
Installation accessories
The combination of stainless steel cable and ferrule connection creates a strong and durable mesh system suitable for long-term outdoor applications.
Advantages of Stainless Steel Ferrule Rope Mesh
1. Excellent Corrosion Resistance
Manufactured from 304 or 316 stainless steel, ferrule rope mesh provides excellent resistance against rust, moisture and harsh weather conditions.
316 stainless steel cable mesh is especially suitable for:
Coastal environments
Marine applications
Outdoor structures
High humidity areas
2. High Strength and Flexible Structure
The stainless steel cable structure provides outstanding tensile strength while maintaining flexibility.
The mesh can absorb external forces and adapt to different installation environments, making it widely used for:
Safety protection
Animal enclosure
Architectural decoration
Bridge protection
3. Long Service Life
Stainless steel ferrule rope mesh requires minimal maintenance and can maintain excellent performance for many years.
Its durability makes it a cost-effective choice for large-scale construction and engineering projects.
Applications of Stainless Steel Ferrule Rope Mesh
Zoo Animal Enclosure Mesh
One of the most popular applications is zoo and animal protection systems.
The transparent structure provides a safe environment while maintaining excellent visibility.
Every project has different requirements. We provide customized:
Mesh opening size
Cable diameter
Panel dimensions
Installation method
Stainless steel grade
Accessories
Our engineering team can design suitable stainless steel ferrule rope mesh solutions according to architectural drawings and application requirements.
Why Choose Our Stainless Steel Rope Mesh?
Professional Manufacturing
We use advanced production equipment and strict quality control systems to ensure every cable mesh panel meets international standards.
Custom OEM Service
We support OEM and customized orders for distributors, contractors and engineering companies.
Global Project Experience
Our stainless steel cable mesh products are supplied for projects including:
Zoos
Hotels
Airports
Commercial buildings
Landscape projects
Infrastructure facilities
FAQ
What is stainless steel ferrule rope mesh used for?
Stainless steel ferrule rope mesh is commonly used for zoo enclosures, architectural decoration, railing systems, safety protection and animal cages.
What is the difference between ferrule rope mesh and knotted rope mesh?
Ferrule rope mesh uses metal ferrule sleeves to connect cables, creating a cleaner appearance and more flexible design. Knotted rope mesh uses mechanical knots for connection.
Is 316 stainless steel suitable for outdoor applications?
Yes. 316 stainless steel provides higher corrosion resistance and is recommended for coastal, marine and high humidity environments.
Can you manufacture custom cable mesh sizes?
Yes. We provide customized stainless steel rope mesh according to required dimensions, cable diameter and mesh opening.
