Stainless Steel Knotted Rope Mesh
Stainless Steel Knotted Rope Mesh is a flexible and high-strength mesh manufactured from stainless steel wire rope using a knotted construction. It is designed for demanding applications where strength, durability, corrosion resistance, flexibility, and visibility are important.
Also known as stainless steel knotted mesh, knotted stainless steel cable mesh, or stainless steel rope mesh, this product is widely used for zoo animal enclosures, wildlife habitats, bird aviaries, animal cages, safety barriers, balustrades, green walls, and architectural structures.
Arvemesh provides stainless steel knotted rope mesh in SUS304 and SUS316 stainless steel, with customized cable diameters, mesh openings, dimensions, and configurations for different applications.
What Is Stainless Steel Knotted Rope Mesh?

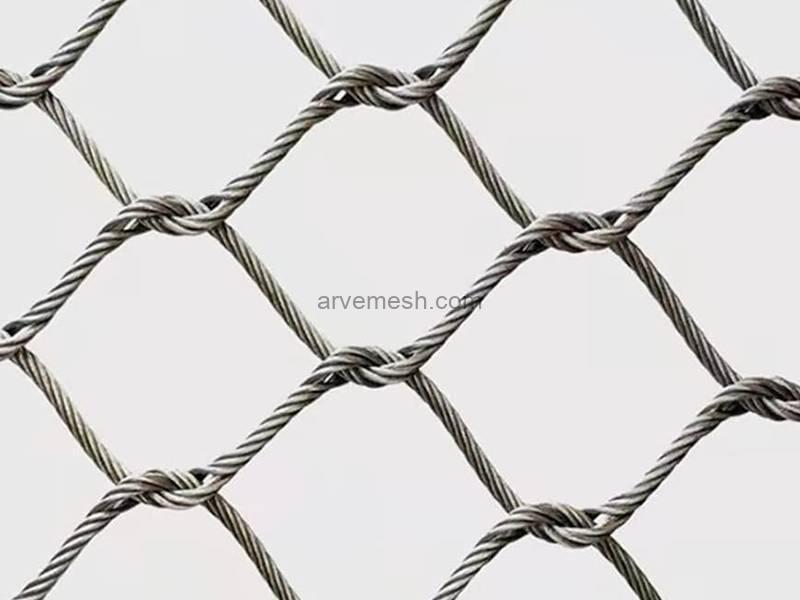

Stainless Steel Knotted Rope Mesh is made by interweaving stainless steel wire ropes and mechanically forming knots at the intersections.
The knotted construction creates a flexible mesh surface with diamond-shaped openings. Compared with rigid welded wire mesh, the rope structure can adapt to curved surfaces, irregular structures, and large-span enclosure designs.
The main characteristics include:
- High tensile strength
- Flexible structure
- Excellent corrosion resistance
- Open diamond pattern
- High visibility
- Good ventilation
- Long service life
- Customizable dimensions
Stainless steel knotted rope mesh is commonly used for zoo fencing, animal cages, aviaries, marine parks, garden protection, bridges, railings, and architectural applications.
Stainless Steel Knotted Rope Mesh Specifications
The mesh can be customized according to application and project requirements.
| Specification | Available Options |
|---|---|
| Material | SUS304 / SUS316 Stainless Steel |
| Mesh Type | Knotted Rope Mesh |
| Opening Shape | Diamond |
| Rope Construction | 7 × 7 / 7 × 19 |
| Cable Diameter | 1.2 / 1.6 / 2.0 / 2.4 / 3.2 / 4.0 mm |
| Mesh Opening | 20–120 mm+ |
| Mesh Angle | Standard 60° / Custom |
| Panel Width | Custom |
| Panel Height | Custom |
| Surface | Natural Stainless Steel / Polished |
| Installation | Frame / Post / Cable Supported |
Common commercial specifications include cable diameters from 1.2 mm to 4.0 mm and mesh openings ranging from approximately 20 × 20 mm to 120 × 120 mm or larger.
The final specification should be selected according to the application, required strength, mesh span, animal species, supporting structure, and environmental conditions.
7 × 7 Stainless Steel Knotted Rope Mesh
7 × 7 is one of the commonly used wire rope constructions for stainless steel knotted mesh.
It provides a balance between strength and flexibility and can be used for:
- Animal enclosures
- Zoo mesh
- Aviaries
- Architectural railings
- Safety barriers
- Green wall systems
Typical combinations include 1.6 mm, 2.0 mm, 2.4 mm, and other cable diameters with different mesh openings. Published product specifications show 7×7 knotted mesh configurations ranging from smaller 25 × 25 mm openings to larger openings such as 120 × 120 mm.
7 × 19 Stainless Steel Knotted Rope Mesh
7 × 19 wire rope construction can be selected for applications requiring a different balance of flexibility and mechanical performance.
It is commonly considered for:
- Large animal enclosures
- Heavy-duty zoo mesh
- Large-span structures
- Wildlife habitats
- Large aviaries
- Architectural cable mesh
For example, published specifications include 3.2 mm 7×19 stainless steel rope mesh with 51 × 51 mm, 76 × 76 mm, 90 × 90 mm, 102 × 102 mm and 120 × 120 mm class openings.
Stainless Steel Cable Diameter
Cable diameter is one of the most important factors affecting the performance of knotted rope mesh.
Common options include:
1.2 mm
Suitable for lighter applications and smaller mesh openings where lower cable weight is preferred.
1.6 mm
A versatile option for aviaries, architectural applications, and smaller animal enclosures.
2.0 mm
A common specification for zoo, animal enclosure, aviary, and general outdoor applications.
2.4 mm
Suitable for applications requiring increased cable strength.
3.2 mm
Often selected for demanding animal enclosure and heavy-duty applications.
4.0 mm
Can be considered for specialized high-strength applications where larger cable diameter is required.
The cable diameter should never be selected independently. Mesh opening, rope construction, span, support spacing, and installation conditions should all be considered.
Stainless Steel Mesh Opening
The mesh opening can be customized according to the application.
Common openings include:
- 20 × 20 mm
- 25 × 25 mm
- 30 × 30 mm
- 38 × 38 mm
- 50 × 50 mm
- 60 × 60 mm
- 76 × 76 mm
- 90 × 90 mm
- 100 × 100 mm
- 120 × 120 mm
For some rope mesh configurations, the diamond geometry is specified using the actual width × height of the opening rather than a simple square dimension.
For example, certain stainless steel knotted rope mesh products are specified as 38 × 66 mm, 50 × 86 mm, 60 × 104 mm, or 76 × 131 mm depending on the orientation and construction of the mesh.
SUS304 Stainless Steel Knotted Rope Mesh
SUS304 is the most common stainless steel grade for general-purpose rope mesh applications.
Advantages include:
- Good corrosion resistance
- High strength
- Good durability
- Low maintenance
- Excellent appearance
- Good cost performance
SUS304 knotted rope mesh can be used for:
- Zoo enclosures
- Bird aviaries
- Animal cages
- Architectural railings
- Safety barriers
- Green walls
- Outdoor structures
For many inland and general outdoor projects, SUS304 offers an effective balance between performance and cost.
SUS316 Stainless Steel Knotted Rope Mesh
SUS316 stainless steel is recommended for more demanding environments.
Typical applications include:
- Coastal zoos
- Marine parks
- Aquariums
- Seaside buildings
- Tropical climates
- High-humidity environments
- Marine animal enclosures
For example, stainless steel rope mesh used around marine or aquarium environments may specify 316 stainless steel because of the more corrosive conditions.
Stainless Steel Knotted Rope Mesh for Zoo Enclosures
One of the most important applications of this product is zoo animal enclosure mesh.
The open rope structure provides a strong physical barrier while maintaining excellent visibility between visitors and animals.
Applications include:
Tiger Enclosure Mesh
Tiger habitats require carefully engineered containment systems.
Stainless steel knotted rope mesh can be used for:
- Vertical enclosure walls
- Overhead protection
- Large habitat structures
- Viewing barriers
- Connecting sections
Cable diameter, mesh opening, support structure, and anchoring should be selected according to the actual project requirements.
Lion Enclosure Mesh
The open structure allows visitors to observe lions without the visual obstruction of a solid wall.
Heavy-duty stainless steel rope mesh can be incorporated into lion habitats where high strength and durability are required.
Leopard Enclosure Mesh
Leopards are agile climbing animals, so enclosure design may require both vertical and overhead protection.
The flexible nature of stainless steel knotted mesh allows it to follow curved and irregular structures.
Monkey Enclosure Mesh
Knotted rope mesh is particularly suitable for primate habitats containing trees, climbing structures, platforms, and irregular enclosure shapes.
Large Animal Enclosure Mesh
Stainless steel rope mesh can also be used for various wildlife and large animal enclosure applications.
The final cable and mesh specifications should be determined based on animal species, enclosure design, structural loads, and applicable safety standards.
Stainless Steel Knotted Rope Mesh for Aviaries
Stainless steel knotted rope mesh is widely used for bird aviary mesh.
Its open structure provides:
- Natural light
- Air circulation
- Good visibility
- Flexible installation
- Durable outdoor performance
Typical applications include:
- Parrot aviary mesh
- Eagle aviary mesh
- Macaw aviary mesh
- Cockatoo aviary mesh
- Large bird enclosure mesh
- Walk-through aviary mesh
- Bird park mesh
- Wildlife rehabilitation centers
For aviary projects, mesh opening should be selected according to bird species and enclosure requirements.
Published product information specifically identifies macaws, parrots, and medium-to-large birds as applications for stainless steel rope mesh.
Architectural Applications
Stainless Steel Knotted Rope Mesh is also suitable for modern architectural structures.
The transparent mesh pattern allows designers to create safety barriers without completely blocking the surrounding view.
Applications include:
- Staircase balustrades
- Balcony railings
- Bridge barriers
- Window guards
- Interior partitions
- Building facades
- Green wall systems
- Landscape structures
- Decorative screens
The flexible cable structure can be installed on straight, curved, or irregular structures.
Green Wall Stainless Steel Rope Mesh
Stainless steel knotted rope mesh can be used as a support structure for climbing plants.
Applications include:
- Vertical gardens
- Green facades
- Plant climbing systems
- Landscape walls
- Garden structures
The open mesh provides a support framework while allowing plants to grow through and around the cable structure.
Safety and Protection Applications
Because stainless steel rope mesh combines strength and flexibility, it can also be used in safety applications.
Potential applications include:
- Safety barriers
- Fall protection
- Balcony protection
- Staircase safety
- Playground protection
- Bridge barriers
- Protective fencing
- Landscape safety structures
For safety-critical applications, the mesh specification and supporting structure should be designed according to applicable engineering standards.
Advantages of Stainless Steel Knotted Rope Mesh
High Strength
Stainless steel wire rope provides excellent tensile performance for demanding applications.
Flexible Structure
The knotted construction allows the mesh to adapt to curved and irregular structures.
Corrosion Resistance
SUS304 and SUS316 stainless steel provide strong resistance to outdoor environmental conditions.
Excellent Visibility
The open diamond structure minimizes visual obstruction.
Good Ventilation
The mesh allows natural airflow and light transmission.
Long Service Life
Stainless steel construction provides long-term durability and low maintenance.
Customizable
Cable diameter, mesh opening, rope construction, panel size, and material grade can all be customized.
Suitable for Large Structures
The flexible mesh can be installed over large and complex structures where rigid panels may be difficult to use.
Knotted Rope Mesh vs Ferrule Rope Mesh
Both products are made from stainless steel wire rope, but the connection method is different.
| Feature | Knotted Rope Mesh | Ferrule Rope Mesh |
|---|---|---|
| Connection | Knotted | Stainless Steel Ferrule |
| Structure | Interwoven Rope | Rope + Ferrule |
| Flexibility | Excellent | Excellent |
| Appearance | Woven / Natural | Refined / Uniform |
| Zoo Enclosures | Excellent | Excellent |
| Aviaries | Excellent | Excellent |
| Architecture | Excellent | Excellent |
| Custom Sizes | Yes | Yes |
Knotted rope mesh uses a mechanical knot at the cable intersections, while ferrule mesh uses stainless steel sleeves to form the connections.
The best choice depends on the project application, required appearance, strength, flexibility, and installation method.
How to Choose Stainless Steel Knotted Rope Mesh
Before ordering, buyers should confirm the following specifications.
1. Application
Tell us whether the mesh will be used for:
- Zoo enclosure
- Animal cage
- Aviary
- Wildlife park
- Aquarium
- Railing
- Green wall
- Safety barrier
- Architectural structure
2. Animal Species
For animal enclosure projects, provide the animal species.
Different animals require different containment considerations.
3. Cable Diameter
Select an appropriate cable diameter based on the required strength and application.
4. Mesh Opening
Choose the opening according to the animal species, containment requirements, visibility, and ventilation.
5. Stainless Steel Grade
Choose:
SUS304 – general applications.
SUS316 – coastal, marine, high-humidity, and more corrosive environments.
6. Rope Construction
Choose:
- 7 × 7
- 7 × 19
The final selection should consider cable diameter, mesh opening, span, and structural requirements.
7. Dimensions
For custom orders, provide:
- Width
- Height
- Quantity
- Shape
- Installation direction
- Edge configuration
CAD drawings are recommended for complex projects.
Custom Stainless Steel Knotted Rope Mesh
Arvemesh provides customized stainless steel knotted rope mesh for international B2B customers.
Customization includes:
- SUS304 / SUS316
- Cable diameter
- 7 × 7 / 7 × 19
- Mesh opening
- Mesh angle
- Panel width
- Panel height
- Edge treatment
- Installation configuration
For large projects, customers can provide CAD drawings, enclosure dimensions, or basic technical specifications for evaluation.
Stainless Steel Knotted Rope Mesh Applications
Zoo & Wildlife
- Stainless steel zoo mesh
- Animal enclosure mesh
- Tiger enclosure mesh
- Lion enclosure mesh
- Leopard enclosure mesh
- Monkey enclosure mesh
- Primate enclosure mesh
- Wildlife enclosure mesh
- Safari park mesh
Aviary
- Stainless steel aviary mesh
- Bird aviary mesh
- Parrot aviary mesh
- Eagle aviary mesh
- Macaw aviary mesh
- Cockatoo enclosure mesh
- Walk-through aviary mesh
Architecture
- Stainless steel railing mesh
- Balustrade mesh
- Staircase mesh
- Balcony mesh
- Architectural cable mesh
- Green wall mesh
- Facade mesh
- Decorative cable mesh
Safety
- Safety barrier mesh
- Fall protection mesh
- Protective mesh
- Playground safety mesh
- Bridge protection mesh
Why Choose Arvemesh?
Arvemesh specializes in stainless steel rope mesh and customized cable mesh solutions for international B2B projects.
We provide:
- SUS304 and SUS316 stainless steel
- 7 × 7 and 7 × 19 wire rope
- Multiple cable diameters
- Custom mesh openings
- Custom dimensions
- Knotted rope mesh
- Ferrule rope mesh
- OEM manufacturing
- Project-based quotations
- Technical support
- Export packaging
Our goal is to provide a stainless steel knotted rope mesh solution that matches the project’s application, structural requirements, appearance, and installation conditions.
Request a Stainless Steel Knotted Rope Mesh Quote
Looking for a Stainless Steel Knotted Rope Mesh manufacturer for a zoo, aviary, wildlife, architectural, or safety project?
Please provide:
- Application
- Animal species, if applicable
- Stainless steel grade
- Cable diameter
- Rope construction
- Mesh opening
- Panel dimensions
- Quantity
- Installation requirements
- Project drawings, if available
Arvemesh can provide a customized stainless steel knotted rope mesh solution according to your project requirements.
Contact us today for a quotation and technical recommendation.
