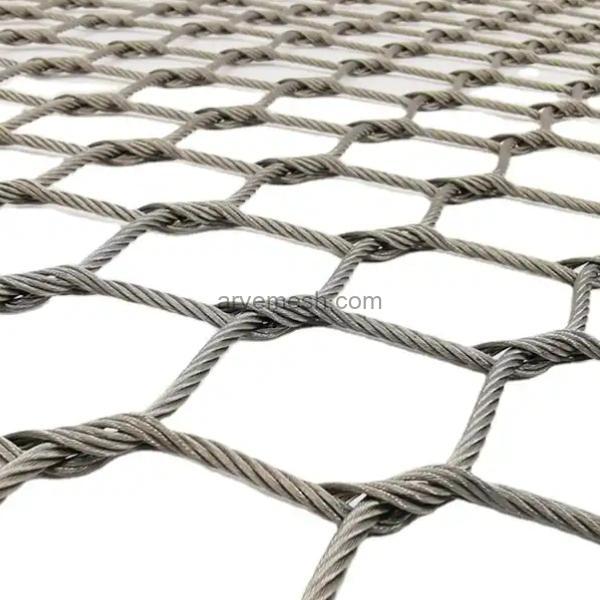

SUS304 Knotted Rope Mesh
SUS304 Knotted Rope Mesh is a flexible and durable stainless steel rope mesh manufactured from AISI 304 stainless steel wire rope. It combines corrosion resistance, tensile strength, flexibility, and excellent visibility, making it suitable for zoo enclosures, animal habitats, bird aviaries, wildlife parks, safety barriers, railings, and architectural structures.
Also known as 304 stainless steel knotted rope mesh, SUS304 stainless steel rope mesh, and 304 knotted cable mesh, this product is a popular choice for outdoor projects where reliable performance and cost efficiency are important.
Arvemesh supplies customized SUS304 knotted rope mesh with different rope diameters, mesh openings, rope constructions, panel sizes, and installation configurations.
What Is SUS304 Knotted Rope Mesh?
SUS304 Knotted Rope Mesh is made from AISI 304 stainless steel wire rope that is interwoven and mechanically knotted at the intersections.
The knotted construction creates a flexible diamond-shaped mesh structure. Unlike rigid welded wire panels, stainless steel rope mesh can adapt to curved surfaces, irregular enclosure structures, large-span designs, and customized architectural systems.
The main characteristics include:
- AISI 304 stainless steel construction
- High tensile strength
- Good corrosion resistance
- Flexible mesh structure
- Diamond-shaped openings
- Excellent visibility
- Good airflow
- Long service life
- Customizable specifications
304 stainless steel is commonly used for zoo and aviary rope mesh, including applications for parrots, medium-to-large birds, and animal enclosures.
SUS304 Knotted Rope Mesh Specifications
We manufacture SUS304 knotted rope mesh according to project requirements.
| Specification | Available Options |
|---|---|
| Material | SUS304 / AISI 304 |
| Mesh Type | Knotted Rope Mesh |
| Opening Shape | Diamond |
| Rope Construction | 7 × 7 / 7 × 19 |
| Rope Diameter | 1.2 / 1.6 / 2.0 / 2.4 / 3.2 / 4.0 mm |
| Mesh Opening | 20–120 mm+ |
| Panel Width | Custom |
| Panel Height | Custom |
| Mesh Configuration | Custom |
| Surface | Stainless Steel Natural Finish |
| Installation | Frame / Post / Cable Supported |
Typical stainless steel knotted rope mesh configurations use 7×7 or 7×19 wire rope with different cable diameters and mesh openings. Published specifications include 1.6 mm, 2.0 mm, 2.4 mm and 3.2 mm rope diameters with openings ranging from approximately 30 mm to 120 mm.
Why Choose SUS304 Stainless Steel?
SUS304 is one of the most widely used stainless steel grades for general outdoor and architectural applications.
It provides a good combination of:
Corrosion Resistance
SUS304 provides good resistance to atmospheric moisture and many common outdoor environments.
Strength
304 stainless steel wire rope provides the tensile strength required for many animal enclosure, aviary, railing, and architectural applications.
Durability
The stainless steel construction is suitable for long-term installations with relatively low maintenance requirements.
Cost Performance
Compared with higher-alloy stainless steel grades, SUS304 can provide a more economical solution for projects that do not require the additional corrosion resistance of SUS316.
Clean Appearance
The stainless steel surface provides a clean, modern appearance suitable for both animal enclosures and architectural applications.
For coastal, marine, or highly corrosive environments, SUS316 may be a more appropriate choice. Your existing Arvemesh product information also recommends SUS316 for coastal and highly corrosive applications.
SUS304 Knotted Rope Mesh for Zoo Enclosures
One of the most important applications of SUS304 Knotted Rope Mesh is zoo animal enclosure mesh.
The open diamond structure creates a physical barrier while maintaining excellent visibility.
Applications include:
- Zoo animal enclosure mesh
- Tiger enclosure mesh
- Lion enclosure mesh
- Leopard enclosure mesh
- Monkey enclosure mesh
- Primate enclosure mesh
- Wildlife enclosure mesh
- Safari park mesh
Stainless steel rope mesh is commonly used for animal enclosures because it combines strength, transparency, flexibility, and durability.
Tiger Enclosure Mesh
SUS304 knotted rope mesh can be incorporated into tiger enclosure systems where the environmental conditions are suitable for 304 stainless steel.
The mesh can be used for:
- Vertical enclosure walls
- Overhead sections
- Large habitat areas
- Viewing barriers
- Connecting enclosure sections
For large predators, the final cable diameter, mesh opening, support structure, and anchoring system should be professionally engineered according to the project requirements.
Lion Enclosure Mesh
The open mesh pattern allows visitors to maintain a clear view of the animals while creating a strong containment barrier.
Monkey Enclosure Mesh
Flexible stainless steel rope mesh can follow complex enclosure structures containing trees, climbing platforms, ropes, and other habitat features.
Wildlife Enclosure Mesh
SUS304 cable mesh can also be used in wildlife parks, conservation facilities, animal rescue centers, and safari projects where the environmental conditions are appropriate.
SUS304 Knotted Rope Mesh for Aviaries
304 stainless steel aviary mesh is a popular application of stainless steel rope mesh.
The flexible diamond structure allows large aviaries to be designed with open walls, curved roofs, and customized enclosure shapes.
Applications include:
- Parrot aviary mesh
- Macaw aviary mesh
- Eagle aviary mesh
- Cockatoo enclosure mesh
- Large bird aviary mesh
- Walk-through aviary mesh
- Bird park mesh
- Zoo bird enclosure mesh
For example, commercially listed 304 stainless steel aviary systems use 1.2 mm rope with 20–30 mm openings for smaller birds and larger rope/opening combinations for larger birds.
The correct mesh opening should always be selected according to the bird species and enclosure design.
SUS304 Rope Diameter Options
Cable diameter is an important factor when selecting SUS304 knotted rope mesh.
1.2 mm
A lightweight option for smaller aviaries and applications requiring smaller mesh openings.
1.6 mm
A versatile option for aviaries, architectural mesh, and general animal enclosure applications.
2.0 mm
A popular specification for zoo mesh, animal enclosures, aviaries, and outdoor applications.
2.4 mm
Suitable for applications requiring increased cable strength.
3.2 mm
A heavier specification commonly considered for demanding animal enclosure and large-span applications.
4.0 mm
Suitable for specialized high-strength applications where a larger cable diameter is required.
The cable diameter should be selected together with the mesh opening, rope construction, span, and supporting structure.
7 × 7 SUS304 Rope Mesh
7 × 7 wire rope construction provides a practical balance of strength and flexibility.
It can be used for:
- Aviaries
- Zoo enclosures
- Animal cages
- Architectural railings
- Safety barriers
- Green wall systems
Typical 7×7 configurations include 1.6 mm, 2.0 mm and 2.4 mm cable diameters with different mesh openings.
7 × 19 SUS304 Rope Mesh
7 × 19 construction can be used when different flexibility and mechanical performance characteristics are required.
It is suitable for consideration in:
- Large animal enclosures
- Heavy-duty zoo mesh
- Large aviaries
- Large-span structures
- Wildlife habitats
Published stainless steel rope mesh specifications include 3.2 mm 7×19 cable with openings such as 51 × 51 mm, 76 × 76 mm, 90 × 90 mm, 102 × 102 mm and 120 × 120 mm.
SUS304 Knotted Rope Mesh Opening Sizes
The mesh opening can be customized according to the application.
Common options include:
- 20 × 20 mm
- 25 × 25 mm
- 30 × 30 mm
- 38 × 38 mm
- 50 × 50 mm
- 60 × 60 mm
- 76 × 76 mm
- 90 × 90 mm
- 100 × 100 mm
- 120 × 120 mm
For diamond rope mesh, the actual opening may also be expressed using width × height dimensions based on the orientation of the diamond.
The correct opening should be selected according to:
- Animal species
- Bird species
- Required containment
- Cable diameter
- Visibility
- Structural requirements
- Installation method
SUS304 vs SUS316 Knotted Rope Mesh
The two stainless steel grades are suitable for different environments.
| Feature | SUS304 | SUS316 |
|---|---|---|
| General Outdoor Use | Excellent | Excellent |
| Corrosion Resistance | Very Good | Excellent |
| Coastal Environment | Limited / Project Dependent | Recommended |
| Marine Environment | Not Preferred | Recommended |
| Humid Environment | Good | Better |
| Cost | More Economical | Higher |
| Zoo Enclosures | Excellent | Excellent |
| Aviaries | Excellent | Excellent |
| Architecture | Excellent | Excellent |
Choose SUS304 when the project is located in a general outdoor or indoor environment and cost efficiency is important.
Choose SUS316 when the mesh will be exposed to salt spray, seawater, coastal conditions, or highly corrosive environments.
SUS304 Knotted Rope Mesh for Architecture
SUS304 knotted rope mesh can also be used for architectural and landscape applications.
Common applications include:
- Staircase balustrades
- Balcony railings
- Bridge barriers
- Window protection
- Interior partitions
- Building facades
- Green wall systems
- Plant climbing structures
- Decorative screens
The open cable structure provides a transparent barrier while maintaining a modern appearance.
Stainless steel cable mesh is widely used in architectural railing, facade, green wall, and partition applications.
SUS304 Knotted Rope Mesh for Green Walls
Stainless steel knotted rope mesh can provide a durable support structure for climbing plants.
It can be installed on:
- Building facades
- Garden walls
- Courtyards
- Landscape structures
- Commercial buildings
- Public spaces
The diamond structure gives climbing plants multiple attachment points while maintaining an open visual appearance.
Advantages of SUS304 Knotted Rope Mesh
1. Good Corrosion Resistance
SUS304 provides reliable corrosion resistance for many general outdoor applications.
2. High Strength
Stainless steel wire rope provides good tensile strength for animal enclosure and safety applications.
3. Flexible
The knotted construction allows the mesh to adapt to curved and irregular structures.
4. Excellent Visibility
The open diamond pattern minimizes visual obstruction.
5. Good Ventilation
Air and natural light can pass through the mesh.
6. Long Service Life
Stainless steel provides durable performance for long-term installations.
7. Customizable
Cable diameter, mesh opening, rope construction, dimensions, and configuration can be customized.
8. Cost Effective
For many general outdoor projects, SUS304 provides an attractive balance between performance and cost.
SUS304 Knotted Rope Mesh vs Ferrule Rope Mesh
Both products use stainless steel wire rope, but their connection methods are different.
| Feature | Knotted Rope Mesh | Ferrule Rope Mesh |
|---|---|---|
| Connection | Mechanical Knot | Stainless Steel Ferrule |
| Appearance | Woven / Natural | Clean / Refined |
| Flexibility | Excellent | Excellent |
| Material | SUS304 / SUS316 | SUS304 / SUS316 |
| Zoo Use | Yes | Yes |
| Aviary Use | Yes | Yes |
| Architectural Use | Yes | Yes |
| Customization | Yes | Yes |
Ferrule rope mesh uses stainless steel ferrules to connect the ropes, while knotted rope mesh uses a mechanical knot at the intersections. Both are established stainless steel cable mesh configurations.
How to Choose SUS304 Knotted Rope Mesh
Before ordering, provide the following information.
Application
For example:
- Zoo enclosure
- Aviary
- Wildlife park
- Animal cage
- Railing
- Green wall
- Safety barrier
- Architectural project
Animal Species
For animal enclosure projects, provide the animal species so the mesh opening and cable specification can be evaluated appropriately.
Rope Diameter
Select the cable diameter based on the required strength and application.
Mesh Opening
Select the opening according to the animal or bird species and project requirements.
Rope Construction
Choose between:
- 7 × 7
- 7 × 19
Panel Dimensions
Provide:
- Width
- Height
- Quantity
- Shape
- Edge configuration
CAD drawings are recommended for complex projects.
Custom SUS304 Knotted Rope Mesh
Arvemesh provides customized SUS304 knotted rope mesh for international B2B customers.
We can customize:
- AISI 304 stainless steel
- Rope diameter
- 7 × 7 / 7 × 19 construction
- Mesh opening
- Mesh angle
- Panel dimensions
- Edge treatment
- Installation configuration
For large zoo, aviary, wildlife, and architectural projects, customers can send CAD drawings or basic project dimensions for technical evaluation.
Applications of SUS304 Knotted Rope Mesh
Zoo & Wildlife
- SUS304 zoo mesh
- 304 animal enclosure mesh
- Tiger enclosure mesh
- Lion enclosure mesh
- Leopard enclosure mesh
- Monkey enclosure mesh
- Primate enclosure mesh
- Wildlife enclosure mesh
- Safari park mesh
Aviary
- 304 stainless steel aviary mesh
- Parrot aviary mesh
- Macaw aviary mesh
- Eagle aviary mesh
- Cockatoo aviary mesh
- Large bird enclosure mesh
- Walk-through aviary mesh
Architecture
- 304 stainless steel railing mesh
- Balustrade rope mesh
- Staircase mesh
- Balcony mesh
- Architectural cable mesh
- Green wall mesh
- Facade mesh
Safety
- Safety barrier mesh
- Protective mesh
- Fall protection mesh
- Playground protection
- Bridge safety mesh
Why Choose Arvemesh?
Arvemesh specializes in stainless steel rope mesh and customized cable mesh solutions for international B2B projects.
We provide:
- SUS304 and SUS316 stainless steel
- 7 × 7 and 7 × 19 wire rope
- Multiple cable diameters
- Custom mesh openings
- Custom dimensions
- Knotted rope mesh
- Ferrule rope mesh
- OEM manufacturing
- Project-based quotations
- Technical support
- Export packaging
- International shipping
Our SUS304 Knotted Rope Mesh is manufactured for customers looking for a reliable combination of strength, flexibility, corrosion resistance, appearance, and cost performance.
Request a SUS304 Knotted Rope Mesh Quote
Looking for a SUS304 Knotted Rope Mesh manufacturer?
Send us:
- Application
- Animal or bird species
- Cable diameter
- Mesh opening
- Rope construction
- Panel dimensions
- Quantity
- Installation requirements
- Project drawings
Arvemesh can provide a customized 304 stainless steel knotted rope mesh solution for your project.
Contact us today for a quotation and technical recommendation.
